DISSOLVED AIR FLOTATION (DAF)

High-Efficiency Oil, Grease & Solids Removal for Industrial Wastewater Treatment

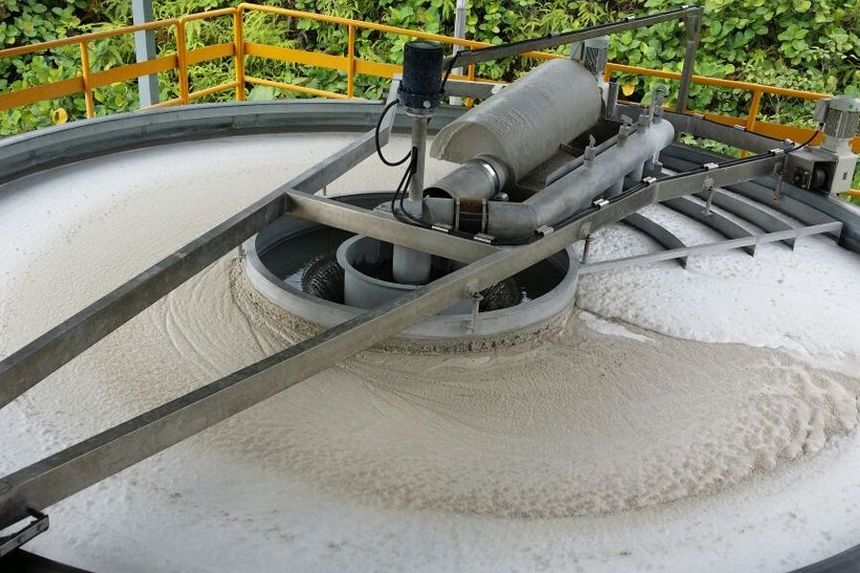

Industrial machinery mixing white material in a circular tank with railings in the background

Overview

Dissolved Air Flotation (DAF) is a compact, high-efficiency clarification technology designed to remove suspended solids, oil and grease (O&G), scum, and colloidal particles from industrial wastewater. As one of the most critical pretreatment systems in an Industrial Effluent Treatment System (IETS), DAF plays a major role in protecting downstream biological and membrane processes while ensuring stable compliance with Malaysian DOE discharge limits


DAF is especially important for industries handling high FOG levels, variable loads, or processes that generate fine suspended solids. By improving water quality early in the treatment chain, DAF reduces operating cost, stabilises performance, and extends equipment lifespan.

Industry Challenges This Solves

O&G creates floating layers, sludge buildup, and fouling in downstream processes such as aeration basins, MBR systems, and RO units. Without proper removal, the entire plant becomes unstable.

Solids overload causes:



  • Sludge carryover
  • Higher chemical consumption
  • Reduced oxygen transfer
  • Uneven aeration performance
  • Inconsistent effluent clarity

Solids overload causes:



  • Sludge carryover
  • Higher chemical consumption
  • Reduced oxygen transfer
  • Uneven aeration performance
  • Inconsistent effluent clarity

Fluctuating influent loads lead to:



  • Biological system shock
  • Higher COD/BOD in final discharge
  • DOE non-compliance
  • Sudden odour formation

Inefficient pretreatment results in:



  • Increased membrane cleaning frequency
  • Higher polymer usage during sludge dewatering
  • Excess sludge production
  • More frequent downtime

DAF directly addresses all these challenges by improving the quality of wastewater entering the main treatment systems.

What DAF Does

DAF works by dissolving air into water under pressure, then releasing the pressurised mixture into a flotation tank. This forms millions of microscopic air bubbles that attach to oils, solids, and particles. The bubbles lift these contaminants to the surface, where they accumulate as a float layer and are removed via a mechanical scraper.


The clarified water then flows to downstream processes such as biological treatment, MBR, or RO.

In simple terms:


 DAF = Micro-bubble separation for cleaner, lighter, more stable wastewater.

How the DAF Process Works Step by Step

Black checkmark inside an outlined circle on a white background.

1. Chemical Conditioning

Coagulants and flocculants bind particles and oils together into larger, floatable flocs.

Black checkmark inside a circle icon on a white background

2. Pressurised Air Saturation

Air is dissolved into water under pressure using a saturator tank.

Black checkmark inside an open black circle on a white background

3. Micro-Bubble Formation

When pressure is released, micro-bubbles attach to flocs and lift them upward.

Black checkmark inside a circle icon on a white background

4. Float Layer Formation

Oils, grease, and solids accumulate on the surface as a thick layer.

Black check mark inside a circle icon on a white background

5. Surface Skimming

A motorised scraper removes the float, sending it to sludge dewatering.

Black checkmark inside a circle icon on a white background

6. Clarified Water Discharge

Clean water leaves the DAF to downstream treatment processes.

This process ensures consistent removal of contaminants that are otherwise difficult to manage.

Why Cheme Advance’s DAF System Is Better

Abandoned industrial facility with large green pipes, rusted machinery, and a flooded concrete channel under skylights

Industrial Effluent Treatment System (IETS)


Comprehensive wastewater treatment systems designed in accordance with Malaysia’s Environmental Quality Act (EQA).


→ Integrating DAF, MBR, and RO recovery technologies for stable operation, consistent discharge, and process reliability.


Learn More→
Industrial air conditioning units and large duct fans outside a modern building under a blue sky

Air Pollution Control Systems (APCS)


Engineering and integration of scrubbers, bag filters, cyclones, and odour control units, ensuring cleaner air and safer working environments.


Learn More→
Person in blue gloves crouches at a dock edge beside dark water, handling a white bag.

Sludge Dewatering Systems


Efficient dewatering and moisture-reduction systems for industrial sludge.


→ Featuring multi-disc screw press & low-temperature sludge dryer to reduce disposal volume, energy use, and cost while improving ESG performance


Learn More→
Large circular wastewater tank with blue railings and machinery, outdoors with trees in the background

Raw Water & Process Water Treatment


Custom solutions for raw and process water clarification, filtration, and disinfection.


→ Incorporating ozone generators and oxidation systems for enhanced purification, colour removal, and microbial control.


Learn More→

Cheme Advance engineers each DAF unit based on real Malaysian industrial wastewater characteristics. This ensures reliable long-term performance, lower operational cost, and compatibility with local DOE requirements.

Our Key Strengths:

Optimised air bubble size for maximum floatation efficiency

Chemical dosing systems calibrated to industrial influents

Heavy-duty scraping mechanism for reliable operation

Optional stainless steel tank construction

Energy-efficient saturator and recirculation pump

Smart automation with level sensors and alarms

Seamless integration with MBR, RO, and sludge dewatering systems

We design for performance, durability, and ease of operation — ensuring the system works 24/7 with minimal supervision.

Key Features

Black water drop icon inside circular arrows, suggesting recycling or water conservation

High O&G removal (>90%)

Black line icon of a 3x3 grid of connected circles on a white background

High suspended solids removal (>80%)

Simple black outline of two footprints on a white background

Compact footprint for industrial plants with limited space

Circular black line icon of clouds over wavy water on a white background

Automatic air saturation and recirculation system

Black line icon of a microchip or electronic component with pins and square details

PLC/SCADA-ready controls

Black line chemical structure diagram with three connected rings and small circles at the vertices

Low chemical consumption

Fast clock icon with motion lines, suggesting urgency or speed

Fast startup and quick response to influent variations

Gear with wrench icon, black outline on white background, indicating settings or maintenance

Minimal maintenance requirements

Operational Benefits

Improved Downstream Performance

DAF protects:


  • Biological reactors
  • Aeration tanks
  • MBR membrane modules
  • RO units
  • Sludge dewatering systems
Lower Operating Cost

  • Less membrane cleaning
  • Lower aeration energy due to reduced solids load
  • Reduced polymer usage
  • Less frequent sludge hauling
Stable DOE Compliance

Consistent pretreatment means:



  • Stable COD/BOD
  • Lower TSS
  • Reduced odour risks
Cleaner, Safer Working Environment

DAF reduces oily surfaces, improves housekeeping, and supports ESG goals.

Each system is engineered for durability, ease of operation, and long-term cost efficiency.

Rows of orange soda bottles on a factory conveyor line with white caps
White chickens in a crowded poultry barn feeding along red troughs
Solar panels in a field under a clear blue sky
Sorting line at a recycling facility with piles of mixed plastic bottles and conveyor belts
Harvested orange and dark red oil palm fruits piled together
Industrial refinery towers and pipes under a cloudy sky
Scientists in white lab suits analyzing data on a computer in a modern laboratory
Open car hood in an auto repair shop, with engine components visible and bright workshop lights in the background
Close-up of metallic industrial blades or fins with a reflective cylindrical surface and motion blur
Shimmering crumpled metallic foil with iridescent blue, gold, and silver reflections
Hands probing a circuit board with test probes, close-up electronics repair
Gloved hands filling small amber glass bottles in a laboratory or production setting
Rows of diagonal paint tubes in black, silver, red, teal, and yellow packaging
Blue gloved hands holding a crumpled clear plastic sheet in an industrial setting
Close-up of the worn pages and spine edge of an old book, with yellowed paper and frayed binding.
Colorful interlocking zigzag fabric pieces in blue, red, yellow, green, gray, and pink on a textured surface

Suitable Industries

DAF is ideal for industries generating oily, greasy, or high-solids wastewater, including:

Rows of orange soda bottles on a factory conveyor line with white caps

Food & Beverage

White chickens in a crowded poultry barn feeding along red troughs

Poultry & Meat Processing

Sorting line at a recycling facility with piles of mixed plastic bottles and conveyor belts

Packaging & Plastics

Harvested orange and dark red oil palm fruits piled together

Palm Oil

Gloved hands filling small amber glass bottles in a laboratory or production setting

Ink, Paint & Coating

Blue gloved hands holding a crumpled clear plastic sheet in an industrial setting

Rubber & Glove Manufacturing

Colorful interlocking zigzag fabric pieces in blue, red, yellow, green, gray, and pink on a textured surface

Textile Dyeing

Solar panels in a field under a clear blue sky

Petrochemical

Close-up of metallic industrial blades or fins with a reflective cylindrical surface and motion blur

Metal Finishing

Rows of diagonal paint tubes in black, silver, red, teal, and yellow packaging

Oleochemical & Fatty Acids

How DAF Fits into a Complete IETS

DAF operates as part of an integrated wastewater treatment train. This alignment ensures stable long-term plant performance.

Upstream:

  • Oil-water separator
  • Equalisation tank
  • Chemical dosing


Black outline icon of a bottle with a droplet symbol on a white background

DAF Stage:

  • Coagulation & flocculation
  • Micro-bubble floatation
  • Skimming
Abstract black outline bubbles on a white background

Downstream:

  • Aeration & biological treatment
  • MBR polishing
  • RO recycling
  • Sludge dewatering or drying
Circular recycling arrows around a water droplet icon, in black line art on a white background

Frequently Asked Questions

  • What is the main purpose of a DAF system?

    To remove oil, grease, suspended solids, and fine particles using micro-bubble flotation.

  • Is DAF required before MBR or RO?

    Yes — it is strongly recommended because it protects membranes from fouling.

  • Does DAF reduce COD?

    It reduces COD linked to oil, fats, and insoluble particles.

  • What chemicals are used?

    Typically coagulants, flocculants, and pH adjustment — optimised based on wastewater composition.

  • How often must DAF be cleaned?

    Daily observation, weekly surface cleaning, and monthly mechanical checks are sufficient.
