MEMBRANE BIOREACTOR (MBR)

High-Performance Biological Treatment for Clean, Clear, Recyclable Water

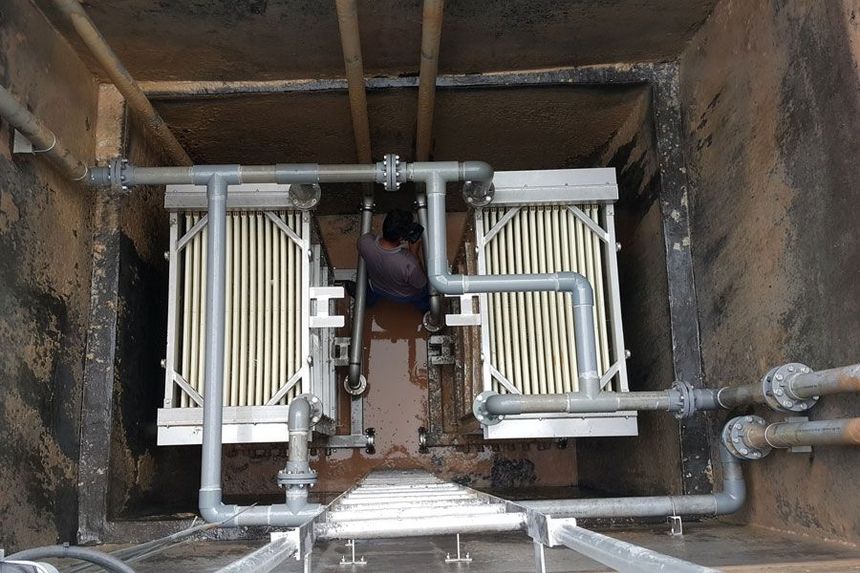

Industrial plumbing pipes and two large white units in a utility shaft, viewed from above.

Overview

A Membrane Bioreactor (MBR) is an advanced wastewater treatment technology that combines biological degradation with membrane filtration to produce exceptionally clear, high-quality effluent. MBR is widely recognised as the next step beyond conventional aeration or clarifier-based systems, offering superior performance, compact footprint, and enhanced suitability for water recycling.


Cheme Advance integrates Mitsubishi Sterapore MBR, a globally proven membrane system known for durability, stable flux, and long operational lifespan — especially under the challenging conditions of Malaysian industrial wastewater.



MBR is ideal for industries seeking DOE compliance, water recycling capabilities, smaller plant size, and more resilient treatment performance.

Challenges Faced by Industries

Malaysian industries commonly encounter issues such as:

Many industrial operations produce wastewater with rapidly changing organic loads, which can overwhelm conventional systems and cause unstable performance.

Mixed industrial effluent often carries suspended particles, sludge, food residue, oils, and chemicals, making clarification difficult.

Many factories lack space for large aeration tanks or clarifiers; MBR is the most compact biological solution.

If upstream processes fluctuate or produce solids, downstream membranes fail quickly — increasing overall cost.

Industries are now pushed to recycle water for sustainability and cost reduction. High-quality MBR effluent is ideal for this purpose. MBR directly solves these challenges with reliable biological treatment and high-quality effluent output.

What MBR Does

The MBR system consists of two main components:


Biological Treatment

Microorganisms break down organic pollutants (COD/BOD), ammonia, and biodegradable compounds.


Membrane Filtration

Hollow fibre membranes separate treated water from solids, bacteria, and particulates — producing clear, low-turbidity effluent.


In simple terms: MBR = Biological treatment + Membrane filtration for crystal-clear water.

How the MBR Process Works Step by Step

Black checkmark inside a black outlined circle on a white background.

1. Biological Degradation

Wastewater enters an aerated tank where microorganisms consume organic pollutants.

Black check mark inside a circle icon on a white background

2. Maintaining High MLSS Levels

MBR operates at much higher biomass (MLSS) compared to conventional systems, enabling more efficient treatment.

Black checkmark inside an outlined circle icon on a white background

3. Membrane Filtration

Membranes act as a physical barrier, allowing only clean water to pass while retaining solids and bacteria.

Black checkmark inside a circle icon on a white background

4. Air Scouring

Air diffusers keep membranes clean by preventing excessive fouling and ensuring stable permeability.

Black checkmark inside a circle icon on a white background

5. Permeate Extraction

A suction pump gently pulls clean, filtered water through the membrane.

Black checkmark inside an outlined circle icon on a white background

6. Discharge or Recycling

 The resulting effluent is suitable for:

  • Discharge
  • Polishing via RO

Direct reuse in cooling towers, washing processes, etc.

This process ensures consistently high-quality effluent even under varying influent conditions.

Why Cheme Advance’s MBR System Is Better

Abandoned industrial plant with large green pipes, tanks, and a reflective water channel.

Industrial Effluent Treatment System (IETS)


Comprehensive wastewater treatment systems designed in accordance with Malaysia’s Environmental Quality Act (EQA).


→ Integrating DAF, MBR, and RO recovery technologies for stable operation, consistent discharge, and process reliability.


Learn More→
Industrial cooling units and metal ductwork outside a large blue factory building under a clear sky.

Air Pollution Control Systems (APCS)


Engineering and integration of scrubbers, bag filters, cyclones, and odour control units, ensuring cleaner air and safer working environments.


Learn More→
Person in white protective suit crouches by a concrete edge above dark blue water, holding a blue net.

Sludge Dewatering Systems


Efficient dewatering and moisture-reduction systems for industrial sludge.


→ Featuring multi-disc screw press & low-temperature sludge dryer to reduce disposal volume, energy use, and cost while improving ESG performance


Learn More→
Large circular blue water treatment tank with settling sludge and metal structures in a facility yard

Raw Water & Process Water Treatment


Custom solutions for raw and process water clarification, filtration, and disinfection.


→ Incorporating ozone generators and oxidation systems for enhanced purification, colour removal, and microbial control.


Learn More→

Cheme Advance designs and commissions MBR systems tailored specifically for Malaysian industrial wastewater. Our integration of Mitsubishi Sterapore MBR provides unmatched endurance and operational stability.

Our Advantage Includes:

Membranes designed for industrial-strength wastewater

High sustainable flux with low fouling tendencies

Robust air scouring to maintain membrane performance

Automated cleaning cycles and CIP options

Smart DO, pH, and pressure monitoring

Durable mechanical and electrical design

Seamless integration with turboblowers, SCADA, and RO units

Our MBR systems are built for long-term reliability, even in industries with high variability.

Key Features

Black circular arrows around a water droplet icon on a white background

Superior effluent quality suitable for recycling or RO

Simple black line diagram of a 3-by-3 grid of connected circles on white background

High MLSS tolerance for stronger biological treatment

Simple black outline of two footprints on a white background

Compact footprint — ideal for space-limited factories

Circular black line icon of a cloud over wavy water lines

Stable operation despite fluctuating influent

Black outline icon of a microchip or circuit board with pins and small square components

Long membrane lifespan due to durable PVDF construction

Black chemical structure diagram with connected hexagonal rings and small circles at the nodes

Energy-efficient aeration with turboblowers

Speeding stopwatch icon with motion lines

Fully automated system with PLC/SCADA integration

Settings gear icon with a diagonal wrench overlay, black outline on white background

Low sludge production, reducing disposal cost

Operational Benefits

Consistently Clear Water

MBR produces effluent with:


  • Low TSS
  • Low COD/BOD
  • Low ammonia (with nitrification)
Reduced Maintenance & Manpower

Minimal manual intervention due to automated controls.

Lower Lifecycle Cost

Although MBR is a premium solution, its:


  • lower sludge production
  • lower chemical consumption
  • longer membrane life
  • stable output
  •

result in excellent long-term cost benefits.

Ideal for Water Recycling Initiatives

MBR permeate is ideal for:



  • Cooling towers
  • Boiler feed (with RO)
  • Washing lines
  • General reuse
Rows of orange soda bottles moving along a bottling conveyor line
White chickens crowded in a poultry barn, eating from red feeders on a dirt floor.
Solar panels in a field at sunrise, angled on metal supports under a clear sky
Trash on a conveyor belt in a brightly lit recycling facility
Pile of glossy red and orange palm fruit bunches tightly packed together
Industrial refinery with tall metal towers and pipes under a cloudy sky
Scientists in white lab suits examine DNA data on a computer in a sterile laboratory
Car engine in a factory assembly line with bright industrial lighting
Close-up of metallic turbine blades with bright reflections and motion blur
Shimmering crumpled metallic foil with iridescent blue, gold, and silver reflections
Hands using probes to test a circuit board in close-up electronics repair
Gloved hands filling small amber glass bottles in a lab or workshop
Rows of wrapped cylindrical rolls in black, silver, red, green, and yellow packaging stacked diagonally.
Blue gloved hands holding a wet blue protective glove in a lab or industrial setting
Close-up of the worn, yellowed pages of an old book with a curved spine
Colorful interlocking fabric swatches in blue, red, yellow, green, white, and gray

Suitable Industries

MBR is recommended for industries requiring reliable polishing or high-quality effluent:

Rows of orange soda bottles moving along a bottling conveyor line

Food & Beverage

Trash on a conveyor belt in a brightly lit recycling facility

Packaging & Plastics

Pile of glossy red and orange palm fruit bunches tightly packed together

Palm Oil (tertiary polishing)

Car engine in a factory assembly line with bright industrial lighting

Automotive

Rows of wrapped cylindrical rolls in black, silver, red, green, and yellow packaging stacked diagonally.

Oleochemical

Robotic arms assembling a green circuit board on a factory line

Electronics & Semiconductor

Scientists in white lab suits examine DNA data on a computer in a sterile laboratory

Pharmaceutical

Colorful interlocking fabric swatches in blue, red, yellow, green, white, and gray

Textile Dyeing

Blue gloved hands holding a wet blue protective glove in a lab or industrial setting

Rubber & Glove Manufacturing

How MBR Fits into a Complete IETS

MBR is typically positioned after chemical or physical pretreatment. This creates a complete, robust Industrial Effluent Treatment System.

Upstream:

  • Screening
  • Equalisation tank
  • DAF system
  • Chemical coagulation/flocculation
Black outlined bottle icon with a droplet symbol inside and a tilted cap.

MBR Stage:

  • Biological degradation
  • Membrane filtration
  • Integrated air scouring
Four simple black outlined circles of varying sizes on a white background

Downstream:

  • RO systems for recycling
  • Polishing filters
  • Sludge dewatering systems
Black circular recycling-style arrows around a water droplet icon on a white background

Frequently Asked Questions

  • Is MBR better than conventional aeration?

    Yes — it produces much clearer effluent and requires less space, with higher stability and lower sludge production.

  • Is MBR suitable for water recycling?

    Yes. MBR is the preferred system for industries planning to integrate RO recycling.

  • How long do MBR membranes last?

    Mitsubishi Sterapore membranes typically last 5–8 years under proper operation.

  • Does MBR remove colour?

    Not fully — colour removal may require ozone or chemical polishing depending on industry.

  • Does MBR reduce COD?

    Yes, MBR reduces biodegradable COD significantly. Non-biodegradable COD may require polishing.
